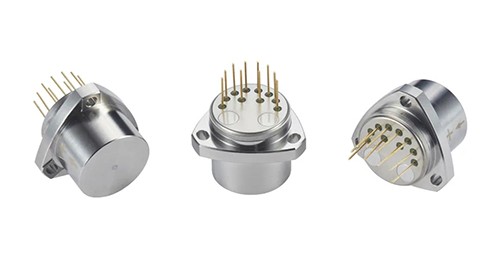

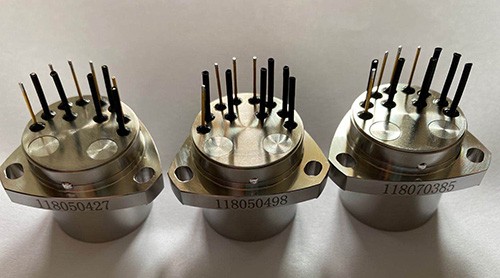

SNQ1 navigation grade Quartz accelerometer is military Quartz accelerometer, Quartz flexible accelerometer, with high range and high accuracy, long term repeatability and excellent reliability. It is cost-effective navigation grade accelerometer, widely used by global customers.
Its output current and force are linearly outputted. Users can calculate, select the appropriate sampling resistance, and achieve the highest precision output. At the same time, the temperature sensor is built in, users can compensate Bias and Scale factor, reduce the effect from temperature.
Application field:
Quartz flexible accelerometer is mainly used in inertial navigation systems, in the fields of aviation, aerospace, ships, military, etc. The navigation grade accelerometer can be used for both static and dynamic testing, also it is a standard vibration sensor.
Features:
Ø Excellent starting repeatability
Ø Good environmental performance
Ø Analog output
Ø Adjustable output range
Ø Built-in temperature sensor, output current linearly transformed with temperature (optional)
Specification
|
No. |
Parameters |
SNQ1-01 |
SNQ1-02 |
SNQ1-03 |
|
1 |
Range(g) |
±50 |
||
|
2 |
Threshold /Resolution(μg) |
5 |
||
|
3 |
Bias k0/k1(mg) |
≤±3 |
≤±3 |
≤±5 |
|
4 |
Scale factor k1(mA/g) |
1.05~1.3 |
||
|
5 |
Class II nonlinearity Coefficient k2/k1(μg /g2) |
≤±10 |
≤±15 |
≤±20 |
|
6 |
0g 4 hours short time stability(μg) |
≤10 |
≤15 |
≤20 |
|
7 |
1g 4 hours short time stability(ppm) |
≤10 |
≤15 |
≤20 |
|
8 |
Bias drift repeatability σ k0( 1σ, one month)(μg) |
≤10 |
≤20 |
≤30 |
|
9 |
Scale factor repeatability σ k1/k1(1σ, one month)(ppm) |
≤15 |
≤30 |
≤50 |
|
10 |
Class II nonlinearity Coefficient repeatability σ k2/k1(1σ, one month)(μg /g2) |
≤±10 |
≤±20 |
≤±30 |
|
11 |
Bias thermal coefficient(μg /℃) |
≤±10 |
≤±30 |
≤±50 |
|
12 |
Scale factor thermal coefficient(ppm/℃) |
≤±10 |
≤±30 |
≤±50 |
|
13 |
Noise (sample resistance 840Ω)(mv) |
≤5 |
≤8.4 |
≤8.4 |
|
14 |
Natural Frequency(Hz) |
400~800 |
||
|
15 |
Bandwidth(Hz) |
800~2500 |
||
|
16 |
Vibration |
6g(20-2000Hz) |
||
|
17 |
Shock |
100g,5ms,1/2sin |
||
|
18 |
Operating temperature range(℃) |
-55~+85 |
||
|
19 |
Storage temperature range(℃) |
-60-+120 |
||
|
20 |
Voltage(V) |
±12~±15 |
||
|
21 |
Consume current(mA) |
≤±20 |
||
|
22 |
Temperaturesensor |
Yes, AD590 or PT1000 |
||
|
No |
||||
|
23 |
Size(mm) |
Ф25.4X30 |
||
|
24 |
Weight(gram) |
≤80 |
||
