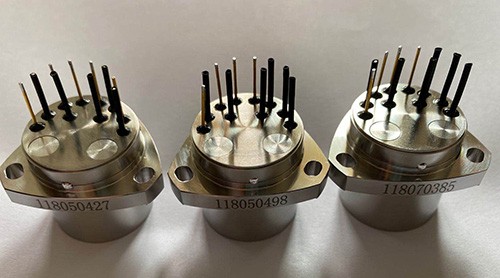

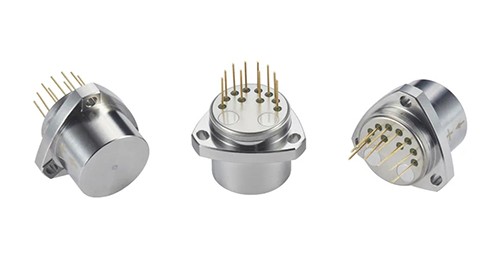

SNQ9-03 aerospace quartz pendulous accelerometer is navigation grade. It can be used in carrier microgravity measurement system and high precision inertial navigation system, also can be used in high precision static angle measurement system.
|
No. |
Parameter |
Performance Indicators |
Unit |
|
1 |
Bias |
≤3 |
mg |
|
2 |
Scale Factor |
1.1~1.5 |
mA/g |
|
3 |
Second-order Nonlinearity |
≤15 |
μg/g 2 |
|
4 |
Bias Temp Coefficient |
≤30 |
ug/℃ |
|
5 |
Scale Factor Temp Coefficient |
≤30 |
ppm/℃ |
|
6 |
Bias month Repeatability |
≤30 |
μg |
|
7 |
Scale Factor Repeatability |
≤30 |
ppm |
|
8 |
Second-order Nonlinearity Repeatability |
≤10 |
μg/g 2 |
|
9 |
Natural Frequency |
≤800 |
Hz |
|
10 |
Acceleration Range |
≥20 |
g |
|
11 |
Vibration |
8 |
grms |
|
12 |
Shock |
120g,4.5ms,1/2sin |
g, ms |
|
13 |
Operating Temp |
-45~+80 |
℃ |
|
14 |
Weight |
≤80 |
g |
|
15 |
Resolution |
≤5×10-6 |
g |
|
16 |
Operating Voltage |
±12~± 15 |
v |
